Agricultural machinery bearing
Betong Bearing provides the solutions needed to meet a variety of agricultural equipment, and provides agricultural machinery bearings that meet national standards. Our agricultural machinery bearings use high-quality lubricants to greatly improve bearing wear resistance, chemical resistance and cavitation resistance. , flow corrosion and fatigue resistance. Greatly reduce the maintenance and maintenance costs of agricultural machinery. Betong agricultural machinery bearings are widely used in agricultural equipment such as tractors, excavators, lawn mowers, harvesters and so on.

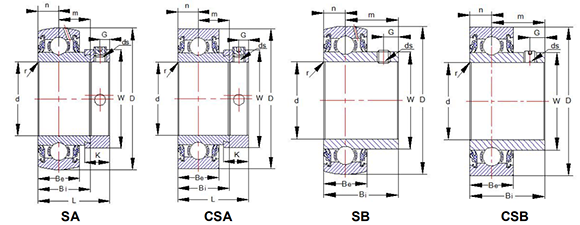

Insert bearing for unit bearing SA200-G / CSA200 series eccentric locking ring SB200-G / CSB200 series set screw locking
| Unit No. | Dimensions in mm | |||||||||||||
| Shaft Diam. | D | L | Bi | Be | r | n | m | W | K | G | ds (UNF-Thread) | Load Rating(Lbs.) | ||
| Dynamic | Static | |||||||||||||
| SA205-14G SA205-16G SA205-25mmG | 7/8 1 25mm | 2.0472 52.000 | 1.22 31.0 | 0.846 21.50 | 0.591 15.00 | 0.039 1.00 | 0.2953 7.500 | 0.551 14.00 | 1.500 38.10 | 0.53 13.5 | 0.189 4.80 | 1/4-28×1/4 M6×P1.0 | 3150 | 1610 |
| SA206-20G SA206-30mmG | 1 1/4(s) 30mm | 2.4409 62.000 | 1.41 35.7 | 0.938 23.82 | 0.709 18.00 | 0.059 1.50 | 0.3543 9.000 | 0.583 14.82 | 1.752 44.50 | 0.63 15.9 | 0.285 7.24 | 5/16-24×5/16 M8×P1.0 | 4370 | 2320 |
| SA207-22G SA207-35mmG | 1 3/8 35mm | 2.8346 72.000 | 1.53 38.9 | 1.000 25.40 | 0.748 19.00 | 0.079 2.00 | 0.374 9.500 | 0.626 15.90 | 2.189 55.60 | 0.69 17.5 | 0.256 6.50 | 3/8-24×3/8 M10×P1.25 | 5770 | 3150 |
| SA208-24G SA208-40mmG | 1 1/2 40mm | 3.1496 80.000 | 1.72 43.7 | 1.188 30.18 | 0.866 22.00 | 0.079 2.00 | 0.4331 11.000 | 0.755 19.18 | 2.378 60.40 | 0.72 18.3 | 0.276 7.00 | 3/8-24×3/8 M10×P1.25 | 7340 | 3650 |
| CSA205-14 CSA205-16 CSA205-25mm | 7/8 1 25mm | 2.0472 52.000 | 1.22 31.0 | 0.846 21.50 | 0.591 15.00 | 0.039 1.00 | 0.2953 7.500 | 0.551 14.00 | 1.500 38.10 | 0.53 13.5 | 0.189 4.80 | 1/4-28×1/4 M6×P1.0 | 3150 | 1610 |
| CSA206-20 CSA206-30mm | 1 1/4(s) 30mm | 2.4409 62.000 | 1.41 35.7 | 0.938 23.82 | 0.709 18.00 | 0.059 1.50 | 0.3543 9.000 | 0.583 14.82 | 1.752 44.50 | 0.63 15.9 | 0.285 7.24 | 5/16-24×5/16 M8×P1.0 | 4370 | 2320 |
| CSA207-22 CSA207-35mm | 1 3/8 35mm | 2.8346 72.000 | 1.53 38.9 | 1.000 25.40 | 0.748 19.00 | 0.079 2.00 | 0.374 9.500 | 0.626 15.90 | 2.189 55.60 | 0.69 17.5 | 0.256 6.50 | 3/8-24×3/8 M10×P1.25 | 5770 | 3150 |
| CSA208-24 CSA208-40mm | 1 1/2 40mm | 3.1496 80.000 | 1.72 43.7 | 1.188 30.18 | 0.866 22.00 | 0.079 2.00 | 0.4331 11.000 | 0.755 19.18 | 2.378 60.40 | 0.72 18.3 | 0.276 7.00 | 3/8-24×3/8 M10×P1.25 | 7340 | 3650 |
| Unit No. | Dimensions in mm | |||||||||||
| Shaft Diam. | D | Bi | Be | r | n | m | G | W | ds (UNF-Thread) | Load Rating(Lbs.) | ||
| Dynamic | Static | |||||||||||
| SB205-14G SB205-16G SB205-25mmG | 7/8 1 25mm | 2.0472 52.000 | 1.063 27.00 | 0.591 15.00 | 0.039 1.00 | 0.2953 7.500 | 0.768 19.50 | 0.197 5.00 | 1.327 33.70 | 1/4-28×1/4 M6×P1.0 | 3150 | 1610 |
| SB206-20G SB206-30mmG | 1 1/4(s) 30mm | 2.4409 62.000 | 1.181 30.00 | 0.709 18.00 | 0.059 1.50 | 0.3543 9.000 | 0.827 21.00 | 0.285 7.24 | 1.567 39.80 | 5/16-24×5/16 M8×P1.0 | 4370 | 2320 |
| SB207-22G SB207-35mmG | 1 3/8 35mm | 2.8346 72.000 | 1.260 32.00 | 0.748 19.00 | 0.079 2.00 | 0.374 9.500 | 0.886 22.50 | 0.276 7.00 | 1.843 46.80 | 5/16-24×5/16 M8×P1.0 | 5770 | 3150 |
| SB208-24G SB208-40mmG | 1 1/2 40mm | 3.1496 80.000 | 1.496 38.00 | 0.866 22.00 | 0.079 2.00 | 0.4331 11.000 | 1.063 27.00 | 0.311 7.90 | 2.067 52.5 | 5/16-24×5/16 M8×P1.0 | 7340 | 3650 |
| CSB205-14 CSB205-16 CSB205-25mm | 7/8 1 25mm | 2.0472 52.000 | 1.063 27.00 | 0.591 15.00 | 0.039 1.00 | 0.2953 7.500 | 0.768 19.50 | 0.197 5.00 | 1.327 33.70 | 1/4-28×1/4 M6×P1.0 | 3150 | 1610 |
| CSB206-20 CSB206-30mm | 1 1/4(s) 30mm | 2.4409 62.000 | 1.181 30.00 | 0.709 18.00 | 0.059 1.50 | 0.3543 9.000 | 0.827 21.00 | 0.285 7.24 | 1.567 39.80 | 5/16-24×5/16 M8×P1.0 | 4370 | 2320 |
| CSB207-22 CSB207-35mm | 1 3/8 35mm | 2.8346 72.000 | 1.260 32.00 | 0.748 19.00 | 0.079 2.00 | 0.374 9.500 | 0.886 22.50 | 0.276 7.00 | 1.843 46.80 | 5/16-24×5/16 M8×P1.0 | 5770 | 3150 |
| CSB208-24 CSB208-40mm | 1 1/2 40mm | 3.1496 80.000 | 1.496 38.00 | 0.866 22.00 | 0.079 2.00 | 0.4331 11.000 | 1.063 27.00 | 0.311 7.90 | 2.067 52.5 | 5/16-24×5/16 M8×P1.0 | 7340 | 3650 |

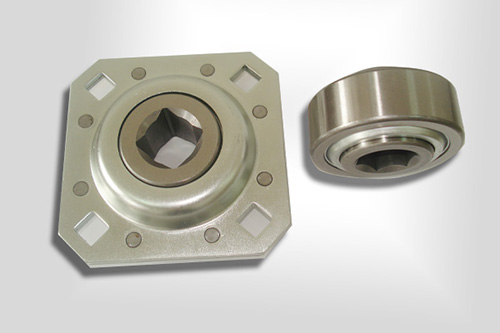

Special bearings For special features, please see the description. For more detailed drawings, please contact your PEER representative.
| FAEM RADIAL | BORE | O.D. | OUTER RING WIDTH | INNER RING WIDTH | DESCRIPTION OF | ||||
| SPECIAL | Inch | mm | Inch | mm | Inch | mm | Inch | mm | SPECIALTIES |
| RX84 | 0.6945 | 17.640 | 2.1248 | 53.970 | 0.6248 | 15.870 | 0.7949 | 20.190 | Hex bore,attached flange,Shroud seals. |
| X365 | 1.0000 | 25.400 | 2.0000 | 50.800 | 0.5906 | 15.000 | 0.7100 | 18.034 | Snap ring.Shroud seals. |
| 202NPP9 | 0.5050 | 12.827 | 1.5000 | 38.100 | 0.4331 | 11.000 | 0.4331 | 11.000 | O.D. turned to 3/4 radius.Shroud seals. |
| 202RRE | 0.5906 | 15.000 | 1.3780 | 35.000 | 0.4331 | 11.000 | 0.8800 | 22.352 | Special bore,extended inner ring.Shroud seals. |
| 203JD | 0.6693 | 17.000 | 1.5748 | 40.000 | 0.4724 | 12.000 | 0.5512 | 14.000 | Inner ring extended one side.Shroud seals. |
| 203KRR3 | 0.6280 | 15.951 | 2.0000 | 50.800 | 0.5906 | 15.000 | 0.5906 | 15.000 | Thick outer ring,two inch O.D.Shroud seals. |
| 203KRR6 | 0.6400 | 16.256 | 1.8504 | 47.000 | 0.4724 | 12.000 | 0.7200 | 18.288 | Thick outer ring,extended inner ring.Shroud seals. |
| 203NPP9 | 0.6260 | 15.900 | 1.5784 | 40.000 | 0.5100 | 12.950 | 0.5100 | 12.950 | Special bore,special width.Shroud seals. |
| 5203KYY2 | 0.6400 | 16.256 | 1.5748 | 40.000 | 1.5400 | 39.116 | 1.7370 | 44.120 | Double row.Double lip Shroud seals. |
| Z9504-2RST | 0.7500 | 19.050 | 1.7805 | 45.225 | 0.6100 | 15.494 | 0.6100 | 15.494 | Basic 6204-2RS with 3/4 bore and.6100 width.Shroud seals. |
| 204KRD4 | 0.6300 | 16.000 | 1.8504 | 47.000 | 0.5512 | 14.000 | 0.6890 | 17.500 | Special bore.Shroud seals. |
| 204KRR14 | 0.6310 | 16.027 | 1.8504 | 47.000 | 0.5906 | 15.000 | 0.7200 | 18.288 | Special ID,width.Shroud seals. |
| 204RR8 | 0.6310 | 16.027 | 1.7805 | 45.225 | 0.6100 | 15.494 | 0.6100 | 15.494 | Special bore,special OD,special width.Shroud seals. |
| 204RY2 | 0.6310 | 16.027 | 1.7805 | 45.225 | 0.6100 | 15.494 | 0.7350 | 18.669 | Gothic arch race,Double lip shroud seal extended side, single lip shroud seal opposite. |
| 205KRP2 | 0.7560 | 19.202 | 2.0472 | 52.000 | 0.5906 | 15.000 | 0.8310 | 21.107 | Special bore,triple lip trash seal extended side,single lip side opposite. |
| 205KR3 | 0.7510 | 19.075 | 2.0472 | 52.000 | 0.7000 | 17.780 | 0.6400 | 16.256 | Special shroud seal one side only. |
| 205KP6 | 0.7560 | 19.202 | 2.0472 | 52.000 | 0.7000 | 17.780 | 0.9210 | 23.393 | Inner ring extended one side,inset side opposite. Triple lip extended side,open side opposite. |
| 205KRR6 | 0.5150 | 13.081 | 2.0472 | 52.000 | 0.5906 | 15.000 | 1.3750 | 34.925 | Special boar,extended inner ring.Shroud seals. |
| 205RR7 | 0.5120 | 13.000 | 2.0472 | 52.000 | 0.5902 | 15.000 | 1.5000 | 38.100 | Inner ring extemded both sides,bearing not centered on inner ring.Shroud seals. |
| G205PPB7 | 0.9375 | 23.813 | 2.0472 | 52.000 | 0.5910 | 15.000 | 1.3780 | 35.000 | Same as 205PPB7 with grease groove |
| 205PPB7 | 0.9375 | 23.813 | 2.0472 | 52.000 | 0.5910 | 15.000 | 1.3780 | 35.000 | Beveled O.D. Triple lip seals. |
| 205PP8 | 0.5104 | 12.964 | 2.0472 | 52.000 | 0.5910 | 15.000 | 1.3750 | 34.925 | Special bore,extended inner ring. Triple lip seals. |
| 205PP9 | 0.7560 | 19.202 | 2.0472 | 52.000 | 0.5910 | 15.000 | 1.3750 | 34.925 | Special bore,extended inner ring. Triple lip seals. |
| 205PP10 | 0.6300 | 16.000 | 2.0472 | 52.000 | 0.5910 | 15.000 | 1.3750 | 34.925 | Special bore,extended inner ring. Triple lip seals. |
| 205PP12 | 0.6350 | 16.219 | 2.0472 | 52.000 | 0.5902 | 15.000 | 1.5000 | 38.100 | Inner ring extemded both sides,bearing not centered on inner ring.Triple lip seals. |
| 206KRRB | 0.7580 | 19.250 | 2.4409 | 62.000 | 0.6300 | 16.000 | 0.9450 | 24.000 | Special bore,extended inner ring. Triple lip seals. |
| 206PD2 | 1.2500 | 31.750 | 2.5625 | 65.088 | 0.6693 | 17.000 | 0.7293 | 18.524 | Special O.D.,extended inner ring,Shroud seals. |
| 5206KPP3 | 1.1870 | 30.150 | 2.4409 | 62.000 | 1.4567 | 37.000 | 1.9685 | 50.000 | Double row.Triple lip Shroud seals. |
| 207KYY | 1.3780 | 35.000 | 2.8346 | 72.000 | 0.6693 | 17.000 | 0.9843 | 25.000 | Extended inner ring.Double lip seal. |
| FHR208-25CD | 1.5625 | 39.688 | 3.1496 | 80.000 | 0.7087 | 18.000 | 1.1890 | 30.200 | Back side extended slightly.Shroud seals. |
| W213-8445 | 2.1880 | 55.575 | 4.7244 | 120.000 | 1.1380 | 28.905 | 2.1870 | 55.550 | Extended inner ring both sides.Open,no seals or shields. |
| 88120-C4 | 0.7874 | 20.000 | 1.8504 | 47.000 | 0.5510 | 14.000 | 0.8190 | 20.800 | Extended inner ring both sides.Shroud seals. |
| 88128R | 1.5312 | 38.892 | 3.1496 | 80.000 | 0.8268 | 21.000 | 1.0830 | 27.500 | Bearing supplied with an axel ring. |
